Pandora
PB-1
overview

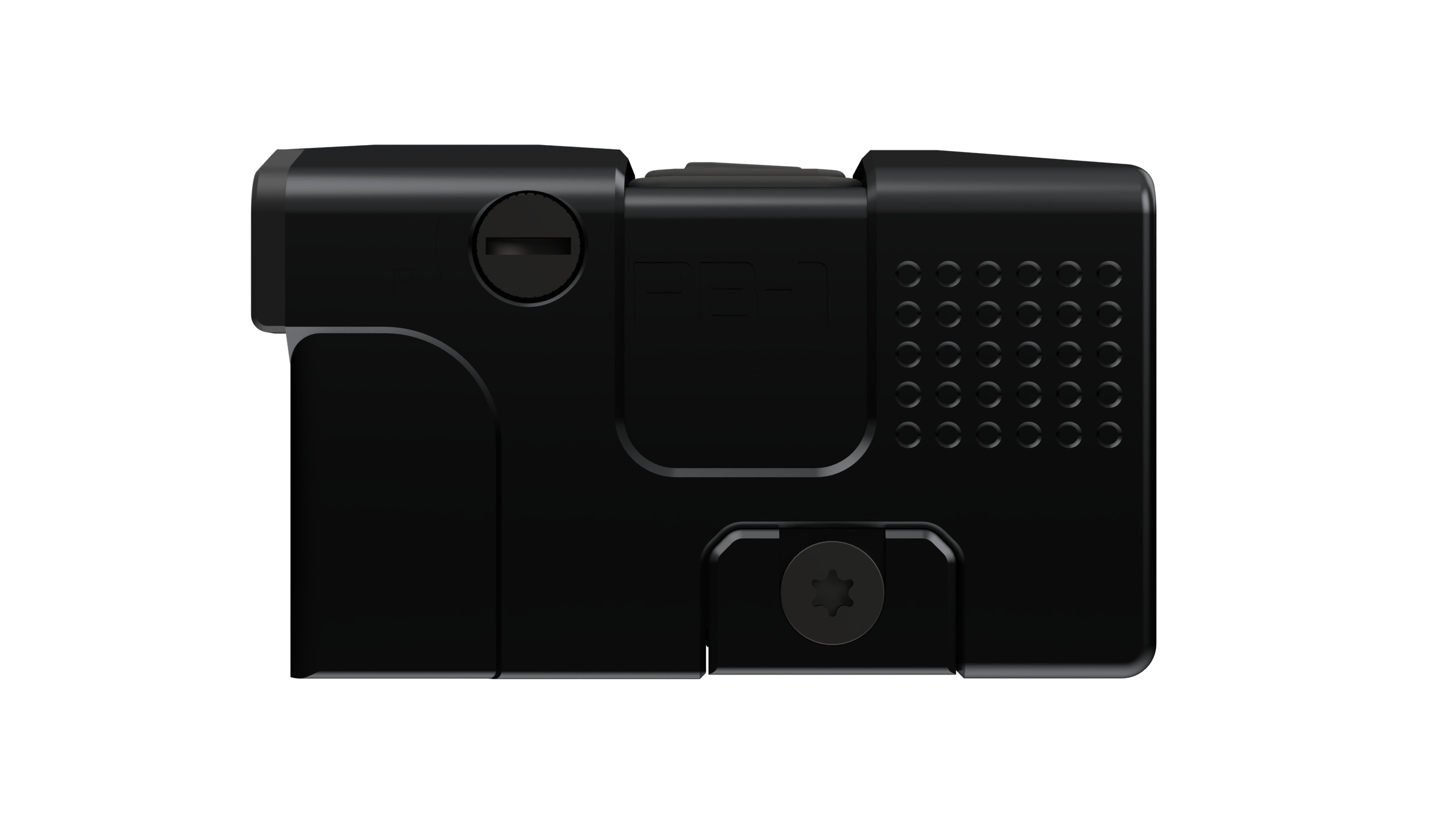

The PB-1 is our solution to a large window, enclosed emitter, durable red dot optic utilizing the ACRO® P2 footprint. Like the Promethean LP-1, it’s made from 7075-T6 housing, refined for added durability, with serrations on housing for added grip. The PB-1 was designed with standoff around objective lens for one handed pistol slide manipulation, ocular offset to protect glass during pistol/rifle retraction through barriers, a beveled leading edge of the battery compartment to assist with re-holstering, and is IPX8 rated for 90 minutes of submersion to 10m.
The PB-1 has a 30% larger window than leading competitors (21x17mm), with sealing plates to sandwich lenses into housing for added security. Running on a 3V CR2032, it’s capable of 30,000+ hr runtime on various daytime settings. With the V2, it offers a stronger clamp and mounting interface to last through rigorous training.
MADE in USA
The PB-1 is our 100% USA made solution to a large window, enclosed emitter, durable red dot optic. Like our Promethean LP-1, the Pandora features novel design characteristics and material selection featuring a new 1 MOA dot reticle.
Protective 6061-T6 extruded aluminum “crumple” hood.
Parallax-free LED, with unlimited eye relief.
Large window for fast target acquisition (1.37″ x 1.04″). 90 degree vertical ocular lens to better diffuse environmental glare.
Lower 1/3rd (1.70″) height to better align with magnifier/mount ecosystems.
0.5-MOA adjustment for windage & elevation.
User-configurable circle/dot & red dot reticles (2-MOA dot, 65-MOA ring + dot, 65-MOA ring only).
Powered by a single CR123A cell for 150,000 continuous runtime with 2-MOA dot reticle (Setting 5/10).
Always on unless manually turned off; “set & forget” design.
Seven daytime settings.
Three night vision settings.
IPX8 waterproof rating with drain ports to prevent pooling near lenses.
Two step Quick-Detach mount that returns to zero.
Adaptable to 1913 rails.
ID grid on crumple hood for various identifiers.
Weights 12.6 oz. with hood.
Unit Size (LxWxH): 95mm x 57mm x 65mm
